Turn a Paper Sewing Pattern into DXF

To turn a paper sewing pattern into DXF, place four printed Reference Tiles around it, photograph it and export DXF R2013 or AAMA/ASTM DXF in millimeters. The app detects the contours automatically, and you check them in the editor before exporting.

The DXF export was tested with GRAFIS and deliberately sticks to the R2013 standard, so other CAD programs open the files cleanly too. AAMA/ASTM DXF is the variant many grading and production systems expect.

Trouser pattern pieces in pattern CAD software on a desktop monitor in a studio

Why DXF?

DXF is the exchange format of the pattern CAD world. GRAFIS, AutoCAD, Lectra Modaris and Gerber AccuMark, to name just a few, all read it. If your grading or production workflow lives in CAD, DXF is how your paper patterns get in.

Standard DXF or AAMA/ASTM: which one do you need?

  • Standard DXF if you work in GRAFIS, AutoCAD or another general CAD program, or if you are not sure. Every CAD program opens it, and it is the variant we test with GRAFIS.
  • AAMA/ASTM DXF if your pattern goes into a dedicated pattern CAD such as Gerber AccuMark or Lectra Modaris. It is the variant made for pattern systems, which expect pattern pieces rather than plain lines.
  • Ask your production partner. If someone else imports the file, ask which variant their system expects. That saves a round trip.

After the import, measure one known length in CAD. If it matches, the scale arrived correctly.

More at home in Illustrator or Inkscape? Then SVG is your format. And for 3D simulation in CLO3D there is PACX.

From paper to DXF in three steps

You take the photo, PatternScan Pro delivers the contour at actual size. Straight from photo to a usable digital pattern.

1

Photograph your pattern

Lay your cut-out pattern piece on a dark surface, place the four Reference Tiles around it and photograph it from above. Our photography guide shows the ideal photo.

2

Check the contours

PatternScan Pro detects the contours automatically. You review the result in the editor, measure lengths and adjust curves where needed.

3

Export as DXF

Export your pattern piece as DXF R2013 or AAMA/ASTM DXF in millimeters and import it straight into your CAD software.

Try the three steps with your own pattern.

Try Free for 14 Days

Made for pattern CAD

Import the DXF into your pattern CAD, for example GRAFIS, AutoCAD, Lectra Modaris or Gerber AccuMark, and keep working as usual: grading, seam allowances, markers, production prep.

  • DXF version R2013: modern enough for clean geometry, established enough that CAD systems read it reliably.
  • Contours as LWPOLYLINE with 32 segments per curve. Predictable geometry that imports reliably, no spline surprises.
  • Standard DXF or AAMA/ASTM. Next to the regular DXF there is a dedicated AAMA/ASTM export for maximum compatibility with pattern CAD systems.
  • Notches, grain line and seam allowance come along. What you set in the editor is in the DXF too.
  • Millimeter units, true to scale. What you measure in the app arrives identically in CAD.

The export is tested with GRAFIS and stays deliberately unspectacular, because unspectacular imports are the ones that work.

Paper pattern compared with a CAD plot of the same pieces on a cutting table

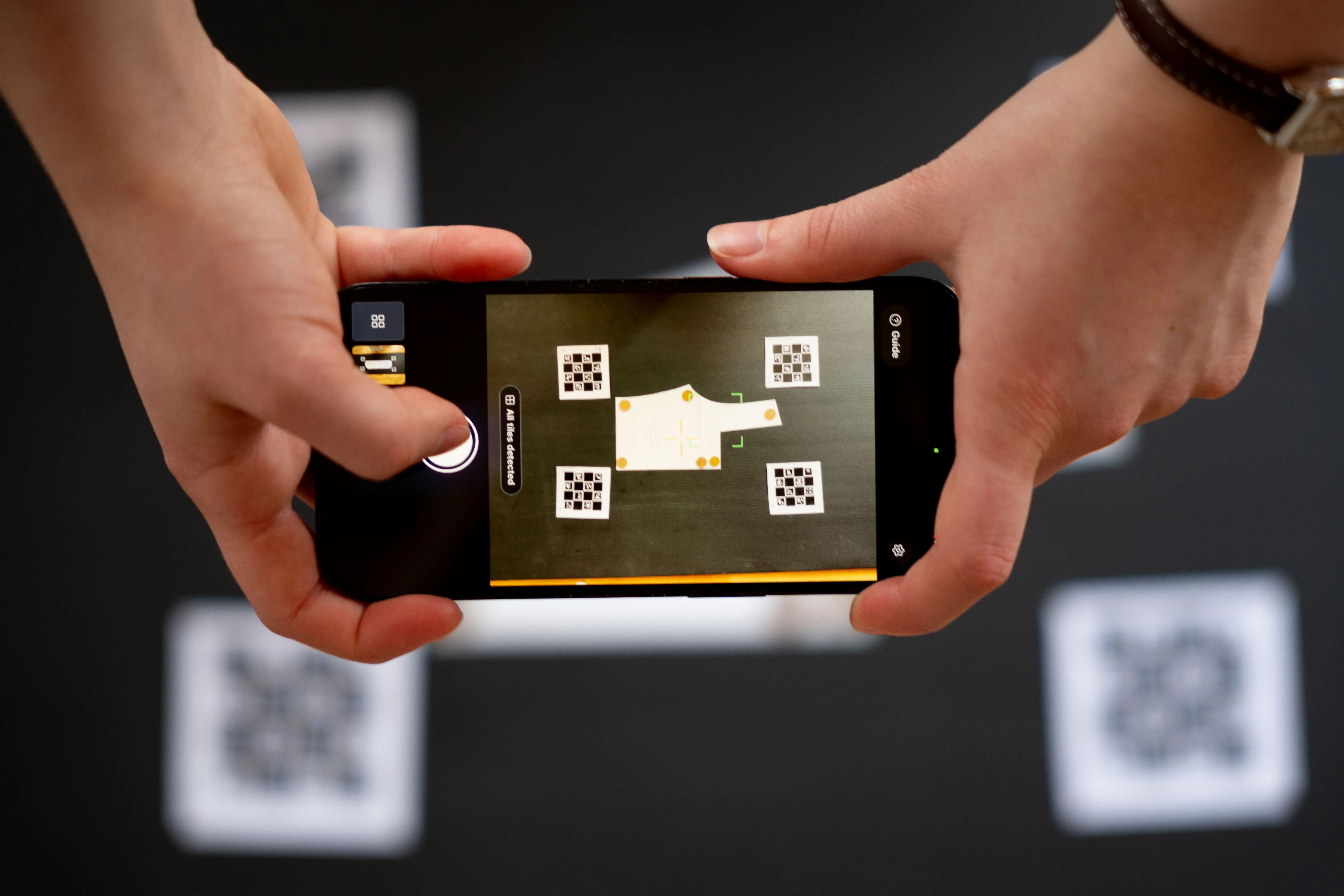

Photographing a sewing pattern framed by the four Reference Tiles

Accurate to the millimeter

The four printed Reference Tiles around your pattern tell the app exactly how large everything is. When the photo is right, meaning the pattern lies flat, you shoot from above and all four tiles are visible, your digital pattern is accurate to the millimeter, ready for CAD work. That is what all our measurement tests show. Check it yourself: measure a known length after importing.

How to take the right photo: our photography guide. More on the tiles in our reference guide.

Questions & Answers

Which DXF version does PatternScan Pro export?

DXF R2013 with millimeter units. Contours are LWPOLYLINEs with 32 segments per curve, a geometry CAD systems import reliably. Next to the regular DXF there is also a dedicated AAMA/ASTM export for pattern CAD systems.

Does GRAFIS or my CAD software open the file?

Tested with GRAFIS. The export sticks to the DXF R2013 standard, which CAD programs like AutoCAD, Lectra Modaris and Gerber AccuMark read as well.

Is the scale correct?

Yes. The Reference Tiles set the scale and the export is in millimeters. We still recommend measuring one known length after importing, as with any digitizing workflow.

Does the pattern have to be cut out?

For automatic detection, yes. The app detects free-standing contours, so cut your pattern along its lines before photographing. Alternatively you can draw the contour manually in the editor, for example on an uncut multi-size sheet. PatternScan Pro still takes care of the scale and the export to any software.

What if I need editable curves instead of polylines?

Then export SVG with native Bezier curves for vector programs, or PACX for CLO3D. You choose the format at export, from the same digitized pattern.

Have more questions? Feel free to contact us.
